MIT-88G-56D-BT
Key Specifications/Special Features INPUT :Input voltage: AC 100V ~ 240V ±10%Input Frequency: 50 ~ 60hzInput current: 1.21A at 100Vac @F.L / 0.78A at 240Vac @F.LInrush current: 25A max at 120Vac & 60A max at 230Vac OUTPUT :Output voltage and current: +56VMax load: 1.34APower: 75W maximumMinimum load 0ALoad regular percentage: 5%Line regular percentage: 1%Ripple percentage: 1%Noise…
MIT-85G-56D-BT
Key Specifications/Special Features: INPUT :Input voltage: AC 100V ~ 240V ±10%Input current: 0.9A at 120Vac @F.L PF > 0.98 ; 0.5A at 230Vac @F.L PF > 0.95Input Frequency: 50 ~ 60hzInrush current: 25A Max at 120Vac & 50A Max at 230Vac OUTPUT :Output voltage and current: +56VMax load: 1.6APower: 90W maximumMinimum load 0ALoad regular percentage:…
MIT-07G-18BNNN
Key Specifications/Special Features InstallationTo install the Gigabit PoE Injector, please follow the steps below. Start connecting the operating voltage solely if all the above requirements are fulfilled. Documents:
MIT-07-24
Key Specifications/Special Features Function:Transforms AC power to 24V DC powerInjects 24V DC through a CAT-5 cable, 4-pin, 5, 7, 8, into remote devices such as < li>wireless AP, IP phone and web cameraInput: 100 to 240V ACOutput: 24V DC, 500mA maximumEfficiency: 70% minimum Protection:Short circuit protection:Any short output GND terminal will lead to an auto…

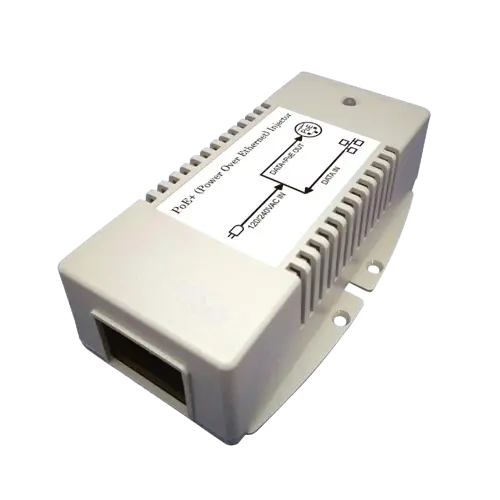

MIT-33G-56B1N
Key Specifications/Special FeaturesINPUT :Input voltage: AC 100V ~ 240VInput current: 0.86A at 100Vac @F.L ; 0.38A at 240Vac @F.LInput Frequency: 50 ~ 60hzInrush current: 25A Max at 120Vac & 50A Max at 230VacOUTPUT :Output voltage and current: +56VMax load: 0.625APower: 35W maximumMinimum load: 0ALoad regular percentage: 5%Line regular percentage: 1%Ripple percentage: 1%Noise percentage: 2%Total power:…

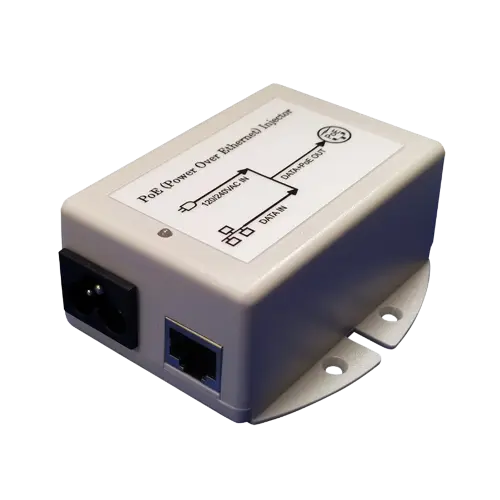

MIT-07N-48BDNN
Key Specifications/Special Features: Safety/Quality Approvals: Certificate Standard Certificate Number Issue Date Certification Agent CE NEI-EMC-1-0507126 30-Dec-2005 Neutron Engineering Inc. FCC NEI-FCCE-1-0507126 30-Dec-2005 Neutron Engineering Inc.
MIT-07G-48BDNN
Key Specifications/Special Features Safety/Quality Approvals Certificate Standard Certificate Number Issue Date Certification Agent CE NEI-EMC-1-0507126 30-Dec-2005 Neutron Engineering Inc. FCC NEI-FCCE-1-0507126 30-Dec-2005 Neutron Engineering Inc. View Specification (195 KB)
MIT-07G-24BNNN
Key Specifications/Special Features InstallationTo install the Gigabit PoE Injector, please follow the steps below. Start connecting the operating voltage solely if all the above requirements are fulfilled. Documents:
MIT-07G-48BNNN
Key Specifications/Special Features InstallationTo install the Gigabit PoE Injector, please follow the steps below. Start connecting the operating voltage solely if all the above requirements are fulfilled. Documents:
MIT-85G-56PNN
Key Specifications/Special Features: INPUT : Input voltage: AC 100V ~ 240V ±10% Input current: 1.5A at 120Vac @F.L PF > 0.98 ; 0.6A at 230Vac @F.L PF > 0.95 Input Frequency: 50 ~ 60hz Inrush current: 25A Max at 120Vac & 50A Max at 230Vac OUTPUT : Output voltage and current: +56V Max load: 2A Power:…
