Produk Kategori: Power Injector DC DC

INPUT : Input Voltage:   1. DC40V to DC60V NORMAL= 56V      2. 802.3at Under Voltage Lockout: DC -34V±1V OUTPUT : Output voltage and current:  Output 1: 5.05V , Output 2: 48V (Vo=Vi) Max load: Output 1: 2.4A , Output 2: 0.38A Power: Output 1: 12W maximum , Output 2: 18W maximum Minimum load: 0A Load regular percentage: 5%…

INPUT :Input Voltage: 10Vdc to 36VdcInput Current: 2.50A at 10Vdc / 0.64A at 36Vdc OUTPUT :Output voltage and current: +48V non-802.3afMax load: 0.42APower: 20W maximumMinimum load: 0ALoad regular percentage: 5%Line regular percentage: 1%Ripple percentage: 1%Noise percentage: 1%Total power: 24WNoise bandwidth is from DC to 20Mhz.Ripple & Noise is measured by Paralleling a 0.1uF metalize capacitor…

INPUT :Input Voltage: 10Vdc to 36VdcInput Current: 2.50A at 10Vdc / 0.64A at 36Vdc OUTPUT :Output voltage and current: +48V non-802.3afMax load: 0.42APower: 20W maximumMinimum load: 0ALoad regular percentage: 5%Line regular percentage: 1%Ripple percentage: 1%Noise percentage: 1%Total power: 24WNoise bandwidth is from DC to 20Mhz.Ripple & Noise is measured by Paralleling a 0.1uF metalize capacitor…

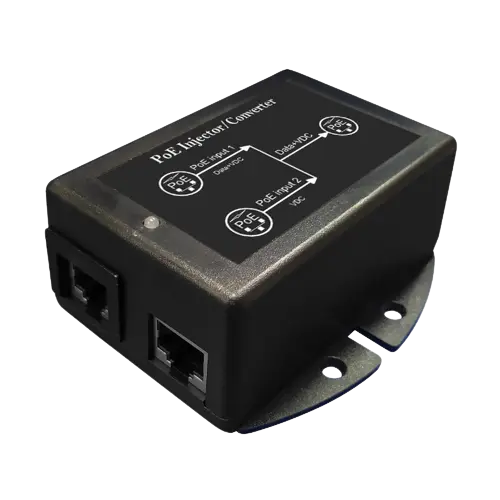

Key Specifications/Special Features DC/DC Gigabit PoE Injector, INPUT : Input voltage: 40Vdc to 57Vdc Normal = 56V Input current: 1.25A at 56Vdc @ 802.3at *2 INPUT Input Polarity: available for both mode A (1,2/3,6) and mode B (4,5/7,8) OUTPUT : Output voltage and current: +56V Max load: 1.25A Power: 70W maximum Minimum load: 0A Load regular…

Key Specifications/Special Features INPUT : Input Voltage: 40Vdc to 72Vdc Normal = 56V Input Current : 2.6A at 40Vdc @Full Load / 1.9 A at 56Vdc @Full Load /  1.5 A at 72Vdc @Full Load OUTPUT : Output voltage and current:  56V Max load: 1.61A Power: 90W maximum Minimum load: 0.01A Load regular percentage: 5% Line…

Key Specifications/Special Features: INPUT : Input Voltage: DC 40V to DC 60V NORMAL= 56V (802.3bt POE/PSE) Under Voltage Lockout: DC 30V OUTPUT : Output 1 (JP2): Output voltage and current:  48V(in=out) Max load: 0.625A Power: 30W maximum Output 1 (JP2): Output voltage and current:  12V Max load: 1.667A Power: 20W maximum Minimum load: 0A Load…

Key Specifications/Special Features INPUT :Input Voltage: DC-40V to DC-60V NORMAL= 56V OUTPUT :Output voltage and current: 12VMax load: 6.67APower: 80W maximumMinimum load: 0ALoad regular percentage: 5%Line regular percentage: 1%Total power: 80WFor maximum output of 80W, the input DC power supply should be 100W minmetalize capacitor on the test point.PoE input must use all 8 pins.…

Key Specifications/Special Features: INPUT : Input Voltage: 18Vdc to 36Vdc Normal = 24V Input Current: 3.65A at 24Vdc @ Full Load OUTPUT : Output voltage and current:  +56V1 Max load: 1.25A Power: 70W maximum Minimum load: 0A Load regular percentage: 5% Line regular percentage: 1% Ripple percentage: 1% Noise percentage: 1% Total power: 70W Noise…

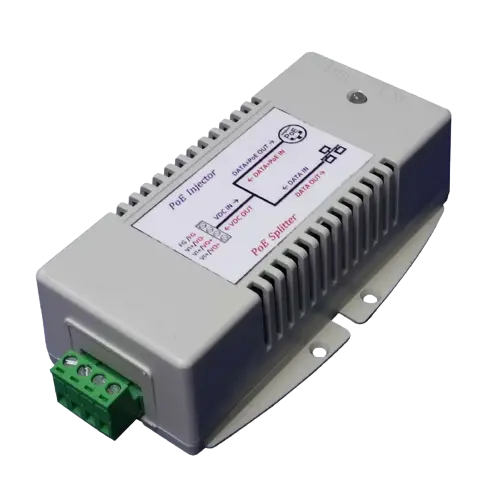

Key Specifications/Special Features: Passive PoE Injector/Splitter INPUT : Input Voltage: DC 12V to DC 48V OUTPUT : Output voltage and current:  Vout=Vin Max load: 1.75A General Description: Operating temperature: -40 to 70 degree Celsius Storage temperature: -40 to 85 degree Celsius Operating humidity: 5% – 90% non-condensing Free air cooling SIZE : 125*72*38 (L*W*H)m/m RJ45 Connection…

Safety/Quality Approvals Certificate Standard Certificate Number Issue Date Certification Agent EN50155 11A052601C2 24-Jun-2011 Interocean EMC Technology Corp. EN60945 11A052601C1 24-Jun-2011 Interocean EMC Technology Corp. View Specification (206 KB)
