MIT-70G-4856BDNNH
INPUT :Input Voltage: 40Vdc to 60Vdc Normal = 48VInput Current: 0.89A at 48Vdc; 1.00A at 40Vdc; 0.70A at 60Vdc*Note: The model isolated design, both positive and negative input are all available. OUTPUT :Output voltage and current: +56VMax load: 0.625APower: Output 35W maximumMinimum load: 0.01ALoad regular percentage: 5%Line regular percentage: 1%Ripple percentage: 1%Noise percentage: 1%Total power:…
MIT-70G-2456BDNNH
INPUT : Input Voltage: 18Vdc to 36Vdc Normal = 24V Input Current: 2.30A at 18Vdc; 1.80A at 24Vdc; 1.20A at 36Vdc OUTPUT : Output voltage and current: +56V Max load: 0.625A Power: Output 35W maximum Minimum load: 0.01A Load regular percentage: 5% Line regular percentage: 1% Ripple percentage: 1% Noise percentage: 1% Total power: 35W Noise…
MIT-70G-1256BDNNH
INPUT : Input Voltage: 10Vdc to 15Vdc Normal = 12V Input Current: 3.6A at 12Vdc; 4.2A at 10Vdc; 2.8A at 15Vdc OUTPUT : Output voltage and current: +56V Max load: 0.625A Power: Output 35W maximum Minimum load: 0.01A Load regular percentage: 5% Line regular percentage: 1% Ripple percentage: 1% Noise percentage: 1% Total power: 35W Noise…
MIT-21G-1224
INPUT :Input Voltage: DC40V to DC60V NORMAL= 56VUnder Voltage Lockout: DC -32V OUTPUT :Output voltage and current: +24VMax load: 1.041APower: 25W maximumMinimum load: 0ALoad regular percentage: 5%Line regular percentage: 1%Ripple percentage: 2%Noise percentage: 5%Total power: 25WRipple & Noise bandwidth is from DC to 20Mhz.Terminated With a 47uF Capacitor and 0.1uf MPE Capacitor of Proper Polarity.Efficiency:…
MIT-20G-4856D2NN
INPUT :Input Voltage: 36Vdc to 72Vdc Normal = 48VInput Current: 1.82A at 48Vdc @ Full Load OUTPUT :Output voltage and current: +56V1, +56V2Max load: 0.625APower: 35W maximumMinimum load: 0.01ALoad regular percentage: 5%Line regular percentage: 1%Ripple percentage: 1%Noise percentage: 1%Total power: 70WNoise bandwidth is from DC to 20Mhz. Ripple & Noise is measured by Paralleling a…

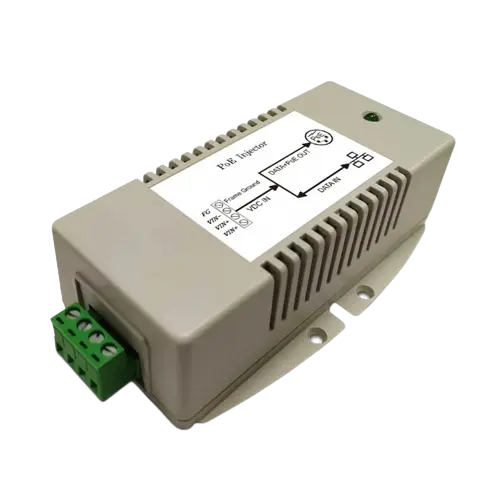

MIT-20G-2456D2NN
INPUT :Input Voltage: 18Vdc to 36Vdc Normal = 24VInput Current: 3.65A at 24Vdc @ Full Load OUTPUT :Output voltage and current: +56V1, +56V2Max load: 0.625APower: 35W maximumMinimum load: 0.01ALoad regular percentage: 5%Line regular percentage: 1%Ripple percentage: 1%Noise percentage: 1%Total power: 70WNoise bandwidth is from DC to 20MhzRipple & Noise is measured by Paralleling a 0.1uF…

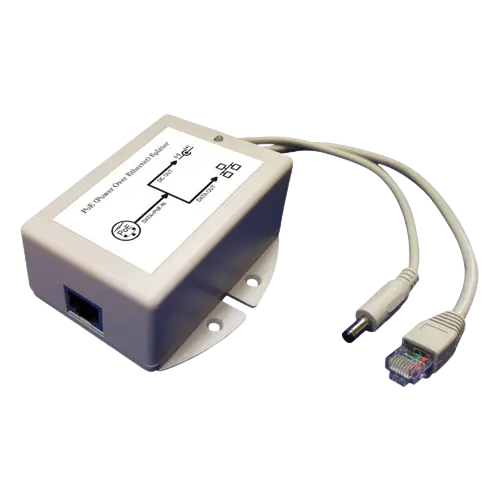

MIT-06G-2512H
INPUT :Input Voltage: DC40V to DC60V NORMAL= 56VUnder Voltage Lockout: DC31~32V Stare Voltage = -33V~35.5V OUTPUT :Output voltage and current: +12VMax load: 2.1APower: 25W maximumMinimum load: 0.1ALoad regular percentage: 5%Line regular percentage: 1%Ripple percentage: 1%Noise percentage: 5%Total power: 25WRipple & Noise bandwidth is from DC to 20Mhz.Terminated With a 47uF Capacitor and 0.1uf MPE Capacitor…
MIT-69G-1248BDNN
INPUT :Input Voltage: 10Vdc to 36VdcInput Current: 2.52A at 10Vdc / 0.64A at 36Vdc OUTPUT :Output voltage and current: +48VMax load: 0.35APower: 17W maximumMinimum load: 0.01ALoad regular percentage: 5%Line regular percentage: 1%Ripple percentage: 1%Noise percentage: 1%Total power: 17WNoise bandwidth is from DC to 20Mhz.Ripple & Noise is measured by Paralleling a 0.1uF metalize capacitor on…
MIT-69N-1224BNNN
INPUT :Input Voltage: 10Vdc to 36VdcInput Current: 2.79A at 10Vdc / 0.78A at 36Vdc OUTPUT :Output voltage and current: +24VMax load: 0.84APower: 20W maximumMinimum load: 0ALoad regular percentage: 5%Line regular percentage: 1%Ripple percentage: 1%Noise percentage: 1%Total power: 20WNoise bandwidth is from DC to 20Mhz.Ripple & Noise is measured by Paralleling a 0.1uF metalize capacitor on…
MIT-69G-1224BNNN
INPUT :Input Voltage: 10Vdc to 36VdcInput Current: 2.79A at 10Vdc / 0.78A at 36Vdc OUTPUT :Output voltage and current: +24VMax load: 0.84APower: 20W maximumMinimum load: 0ALoad regular percentage: 5%Line regular percentage: 1%Ripple percentage: 1%Noise percentage: 1%Total power: 20WNoise bandwidth is from DC to 20Mhz.Ripple & Noise is measured by Paralleling a 0.1uF metalize capacitor on…
